PD3301-af / PD3301-at


Single Port Gigabit PoE Splitter - 5V/12V DC Output Selection
PD3301-af: Port Power ~15W
PD3201-at: Port Power ~24W



PD3301-af (~15W)

PD3301-at (~24W)

Single Port Gigabit PoE Splitter - 5V/12V DC Output Selection

PD3101 & PD3101-at & PD3101G &PD3101G-at (3)

This single port PoE splitter supports the deployment from restrictions of power outlet locations, which eliminates the costs for additional AC wiring and reduces the installation time. Data and power transmission distance can be up to 100 meters.

For the cost saving and power management purpose, the PD3301 is the ideal IEEE 802.3af/at Power over Ethernet device that splits the 48V DC into 5V/12V DC power output through the RJ-45 Ethernet cable. It complies with IEEE 802.3af/at Power over Ethernet, IEEE 802.3/802.3u 10/100Base-TX Ethernet standard.



Main Features

v  Dual output, 5V/ 12V DC output, can be adjustable

v  Compatible with IEEE 802.3af/at PSE devices

v  Support 10/100/1000M data transmission through RJ45 port

v  Auto-negotiation and auto-MDIX fast Ethernet RJ45 port

v  Supports both Mid-span (4/5+, 7/8-) and End-span (1/2+, 3/6-)

v  IEEE802.3i; IEEE802.3u; IEEE 802.3x Flow Control; IEEE802.1af DTE Power via MDI

v  1000Base-TX (Less than 100 meters, CAT5 cable)

v  Splits the 48V DC power over RJ-45 Ethernet cable into 5V/ 12V DC output





Technical Specifications

Model

PD3301-af

PD3301-at

Description

Splits the 48V DC power over RJ-45 Ethernet cable into different DC output.

Compatible with IEEE 802.3af/at standard PSE devices

Network Protocols

IEEE 802.3i 10BASET

IEEE 802.3u 100BASET

IEEE 802.3ab 1000BASET

IEEE 802.3x Flow Control

IEEE 802.3af DTE Power via MDI

IEEE 802.3at

Input port

PoE port

Output

DC 5V/ 12V, RJ45 port

Network Medium

1000Base-TX (less than 100 meters, CAT5 cable)

PoE Features

IEEE802.3af/at

Power over Ethernet

15.4W

24W

Dual Output

5V/ 12V DC output

Dimension/ Weight

80X76X25mm/ 0.113kg

Environment

Operating temperature: -20 to 55° C

Storage temperature: -20 to 75°C

Certification

CE Mark, commercial, FCC Part 15 Class B, RoHS

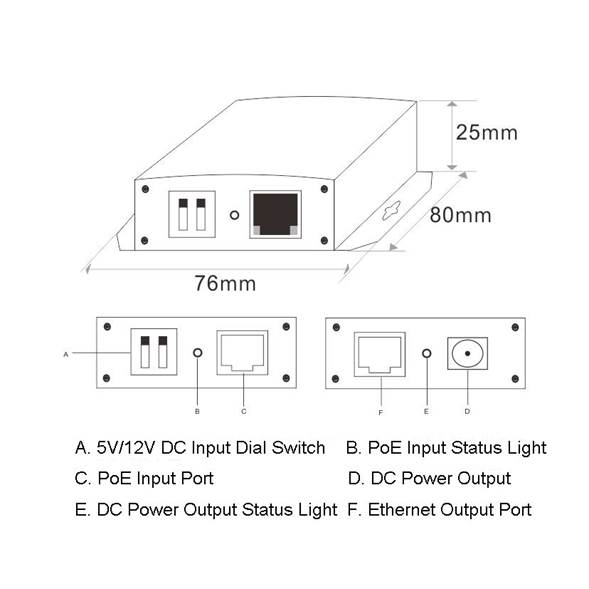

Dimensions
